HVAC Air-Trap

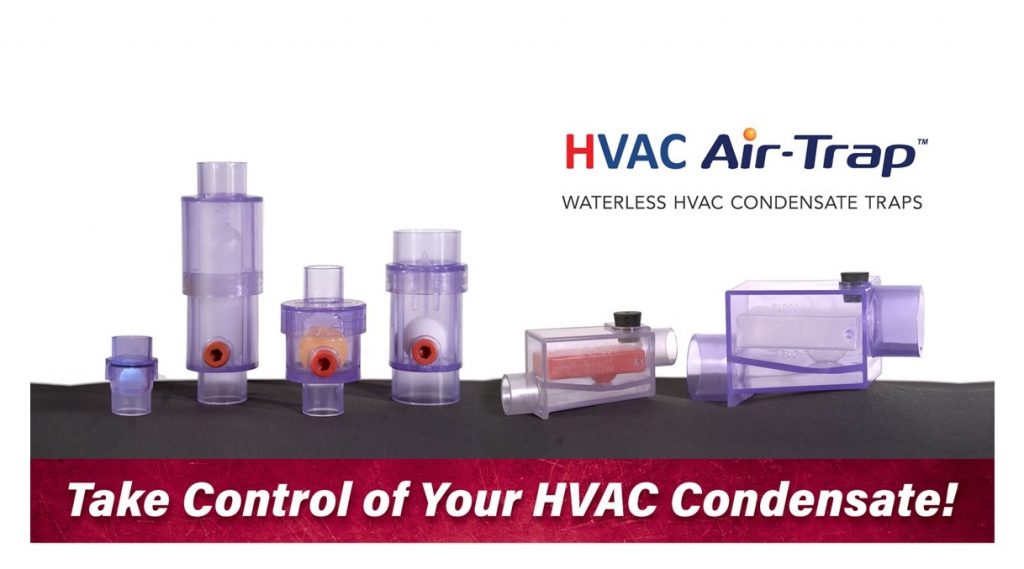

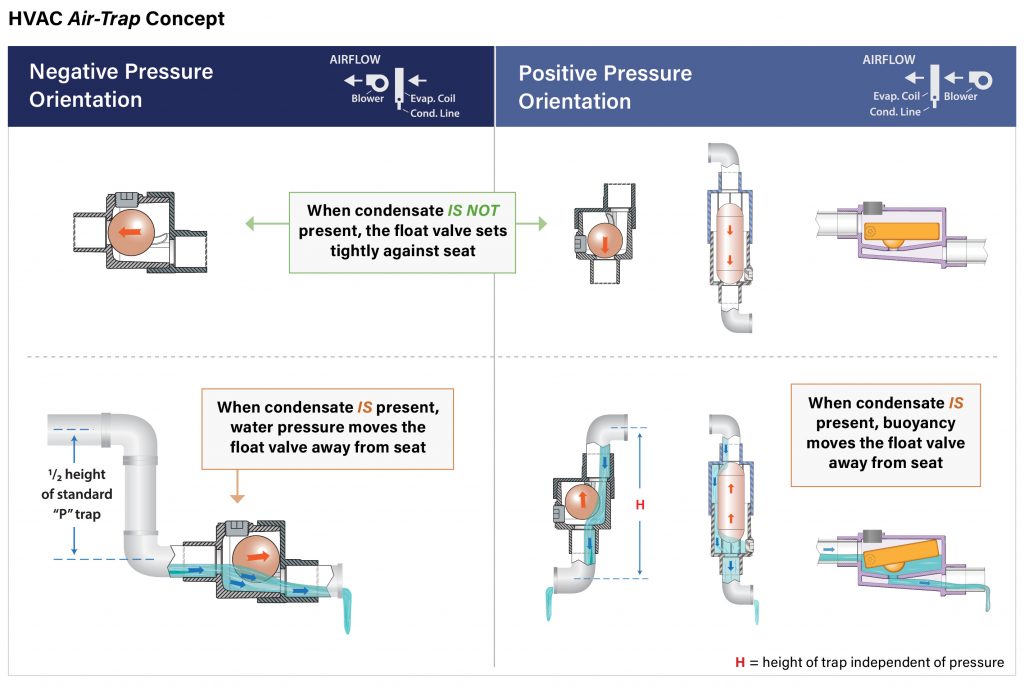

HVAC Air-Trap™ waterless traps allow liquid condensate to drain from the HVAC equipment and simultaneously prevent air from entering or escaping from the equipment.

Solves Common Issues Associated with Standard P-traps

Operates Dry — Eliminating:

  • Freezing and breaking
  • Dry outs
  • Sludge buildup
  • Geyser effect
  • Mold and mildew caused by geyser effect
  • Prevents air leakage
  • Reduces trap height requirement by 1/2
  • Predesigned — eliminating field-designed errors

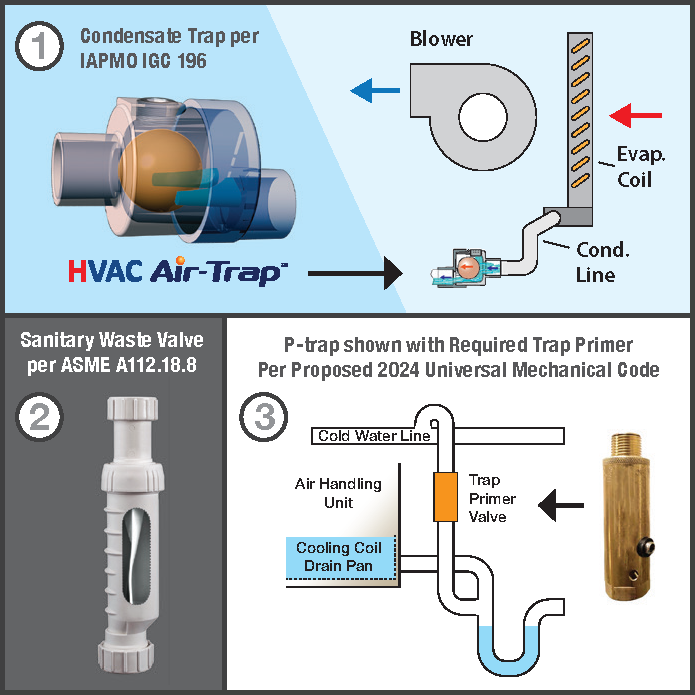

HVAC Air Trap is certified to meet IMC, IRC, and UMC codes back to 2009 to currently published codes. Here are the three currently certified methods for condensate and cross-contamination.
